Belzona 7211

An epoxy based system specifically designed as a deep pour grout for up to 20.5 cm (8 in). The system offers high compressive strength, excellent creep resistance and minimal shrinkage.

Belzona 7211

Belzona 7211 is a three-component, 100% solids, VOC free epoxy system suitable for deep pour grouting of large machine bases, setting large levelling wedges and sole plates. It offers rapid strength development, superior creep resistance, and minimal shrinkage.

This product is ideally suited for the repairs performed on horizontal surfaces where self-leveling capabilities are required. This grouting compound flows into the spaces under the large machinery and fills completely before solidifying.

Belzona 7211 is offered in two different flowability levels: standard and high to meet various application requirements.

Key benefits:

  • High compressive strength
  • Rapid strength development, superior creep resistance, minimal shrinkage
  • Easy to apply regardless of the scale of the application
  • Application and cure at room temperature - no hot work involved
  • Excellent adhesion to a variety of substrates: concrete, brick, and steel
  • Provides a cost-effective solution for filling large machine bases, deep repairs in foundations, critical machine settings

Applications for Belzona 7211 include:

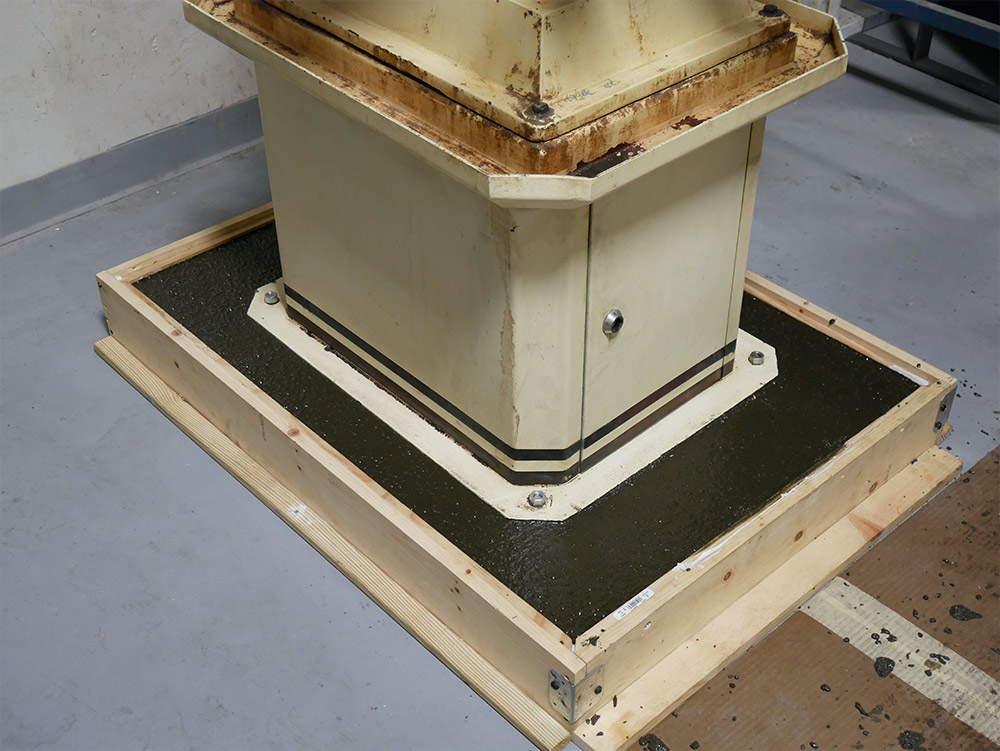

  • Deep grout of large machine bases and critical machine settings: large baseplates, soleplates, skids of machinery such as motors, compressors, drums, vibrating screens, generators, pumps, drivers, rotating equipment
  • Reliable solid foundation systems to ensure the overall function of the equipment: compressors, satellite dishes, wind turbines, pumps
  • Installation of machinery anchor bolts
  • Repairs of damaged equipment foundation
Key technical data:
Cure time 60°F (15°C) 48 hours
72°F (22°C) 24 hours
86°F (30°C) 12 hours
Pull Off Adhesion (ASTM 4541)
Standard Flow:

High Flow:

2,500 psi (17.2 Mpa) on mild steel
610 psi (4.2 MPa) on concrete

2,500 psi (17.2 MPa) on mild steel
650 psi (4.5 MPa) on concrete
Volume Capacity  453 cu. cm (27.65 cu. in)/kg (Standard Flow)
396 cu. cm (24.19 cu. in)/kg (High Flow)
Shelf Life 3 years when stored between 32°F/0°C   and 86°F/30°C
Compressive strength (ASTM D695)
Standard flow:

High Flow:

14,800 psi (102 MPa) 72 hours at 22°C (72°F)

13,300 psi (92 MPa) 72 hours at 22°C (72°F)
Tensile Strength (ASTM D638)
Standard Flow:

High Flow:

2,800 psi (19 MPa) 72 hours at 22°C (72°F)

2,200 psi (15 MPa) 72 hours at 22°C (72°F)
Flexural Strength (ASTM D790)
Standard Flow:

High Flow:

5,800 psi (40 MPa) 72 hours at 22°C (72°F)

5,800 psi (40 MPa) 72 hours at 22°C (72°F

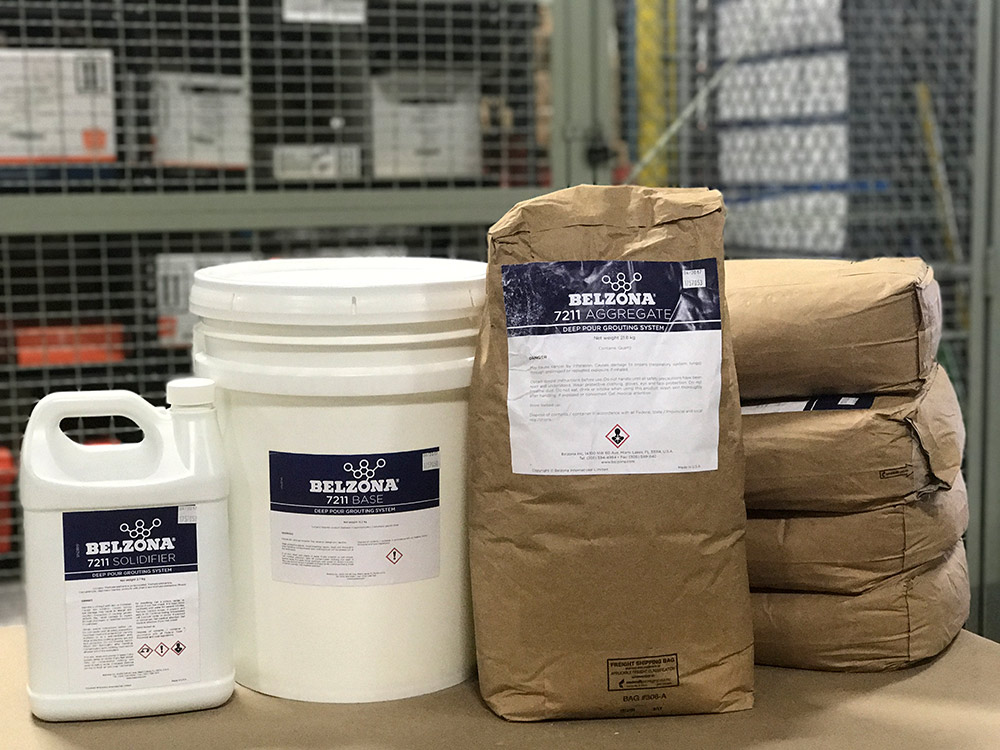

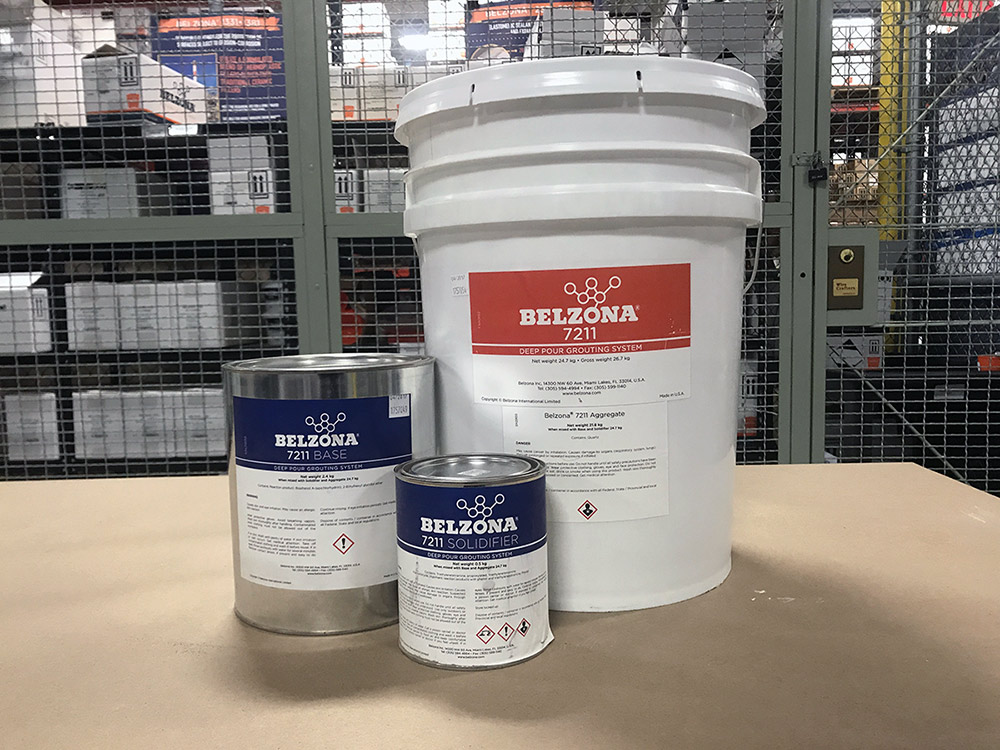

Unit size 24.7 kg and 124 kg
Availability* Currently, available in North America and South America only

* All products are subject to regional restrictions. Check with your local Distributor for more information


More information:

For more information about Belzona 7211 please contact us or find your local distributor.

You can apply to join Belzona Connect to access additional information including SDS and instructions for use.
