Belzona 5892

 An epoxy coating for corrosion and chemical protection of high temperature equipment operating under immersion.

Belzona 5892

A 2-part epoxy coating applied by brush or heated airless spray for corrosion protection of metallic surfaces in contact with aqueous solutions at temperatures up to 95°C (203°F).

This solvent-free material offers good chemical resistance against a wide range of chemicals and protects equipment from the effects of corrosion, salt, water and environmental damage. It will cure at ambient temperature without the need for additional heat, eliminating health and safety hazards.

Belzona 5892 exhibits low surface bloom and excellent inter-coat adhesion enabling 2-coat application without the need for frost blasting. It has been formulated in light colours to assist visibility and provide good inspection characteristics in poorly lit vessels.

This material can also be used for the creation of irregular load bearing shims with good electrical insulation characteristics.

Key benefits:

  • Effectively protects equipment operating under constant immersion up to 95°C (203°F)
  • Suitable for contact with hot potable water, approved by WRAS and NSF/ANSI 61
  • Post cures in service
  • Long-term corrosion resistance
  • Reduced health and safety risks as it is solvent-free
  • Easy application by brush or heated airless spray and cure at room temperature - no hot work involved
  • Two coat system with a long overcoat window
  • Will outperform conventional glass flake coatings
  • Good chemical resistance against a wide range of chemicals
  • Excellent bonding to many surfaces including cast iron, stainless steel, brass, copper, concrete, wood, fiberglass and aluminum

Applications for Belzona 5892 include:

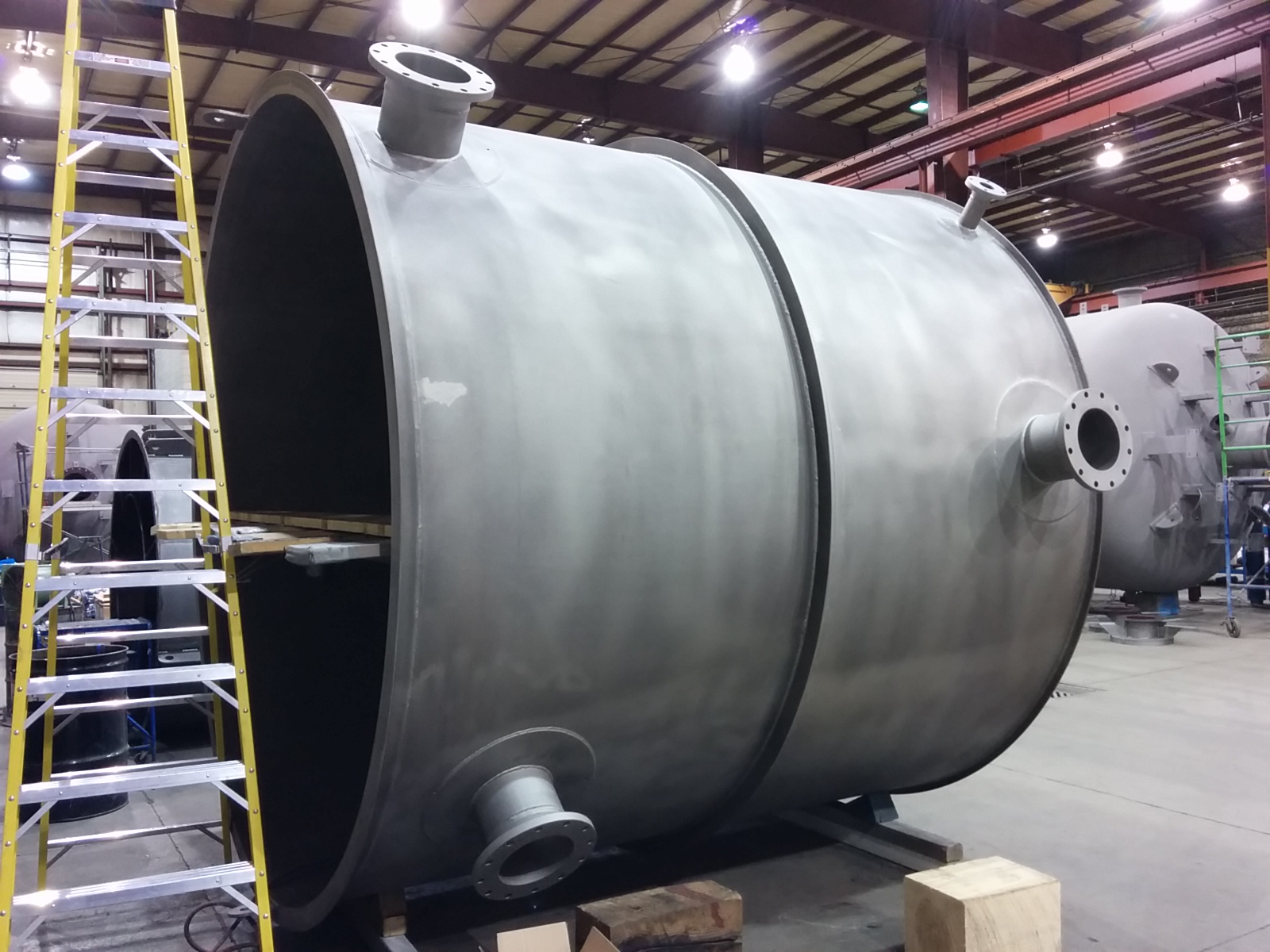

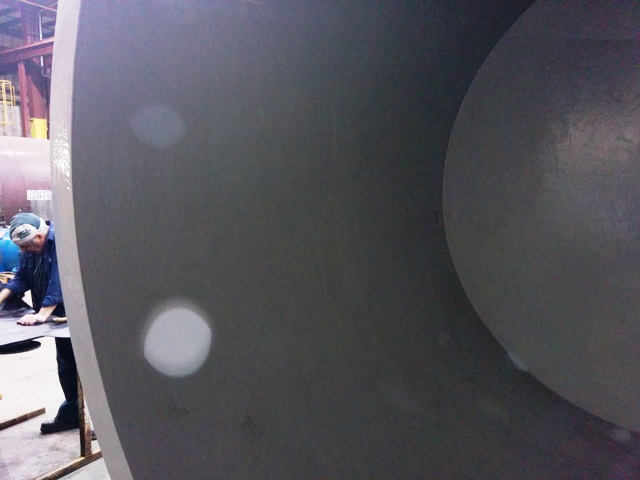

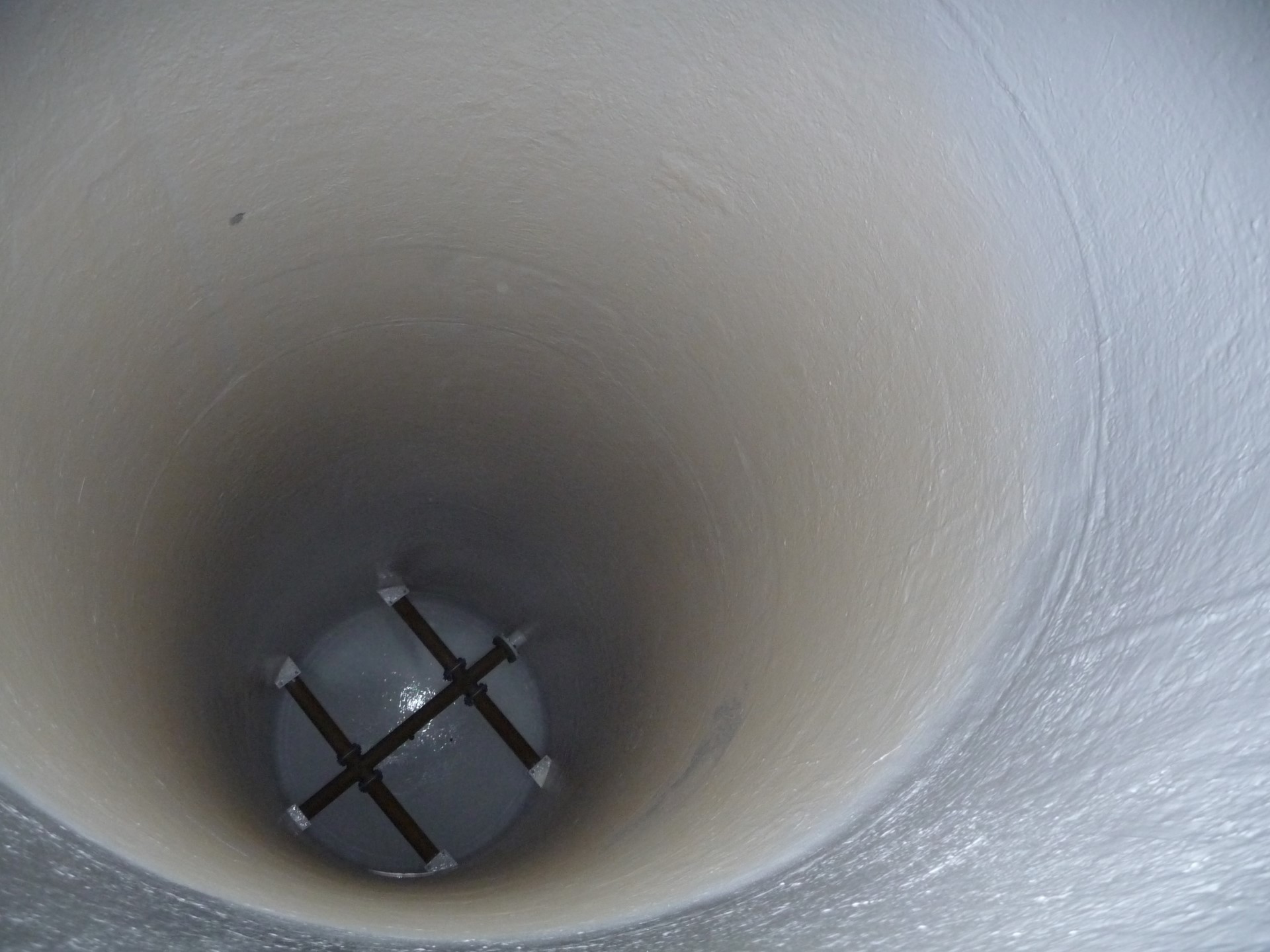

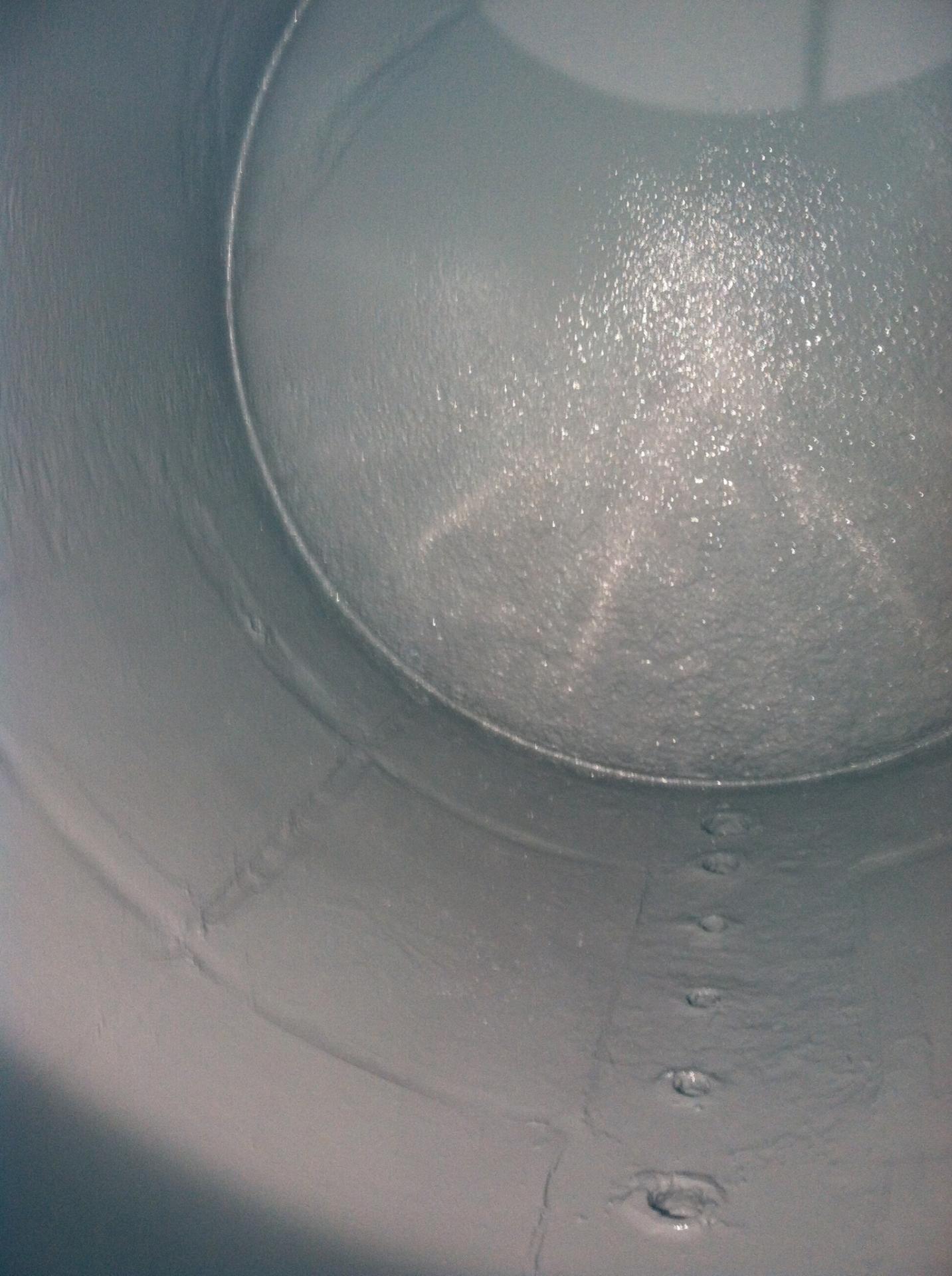

  • Lining of equipment such as vessels, separators, condensers, evaporators, knockout drums, diffusers and heat exchangers operating at high temperature

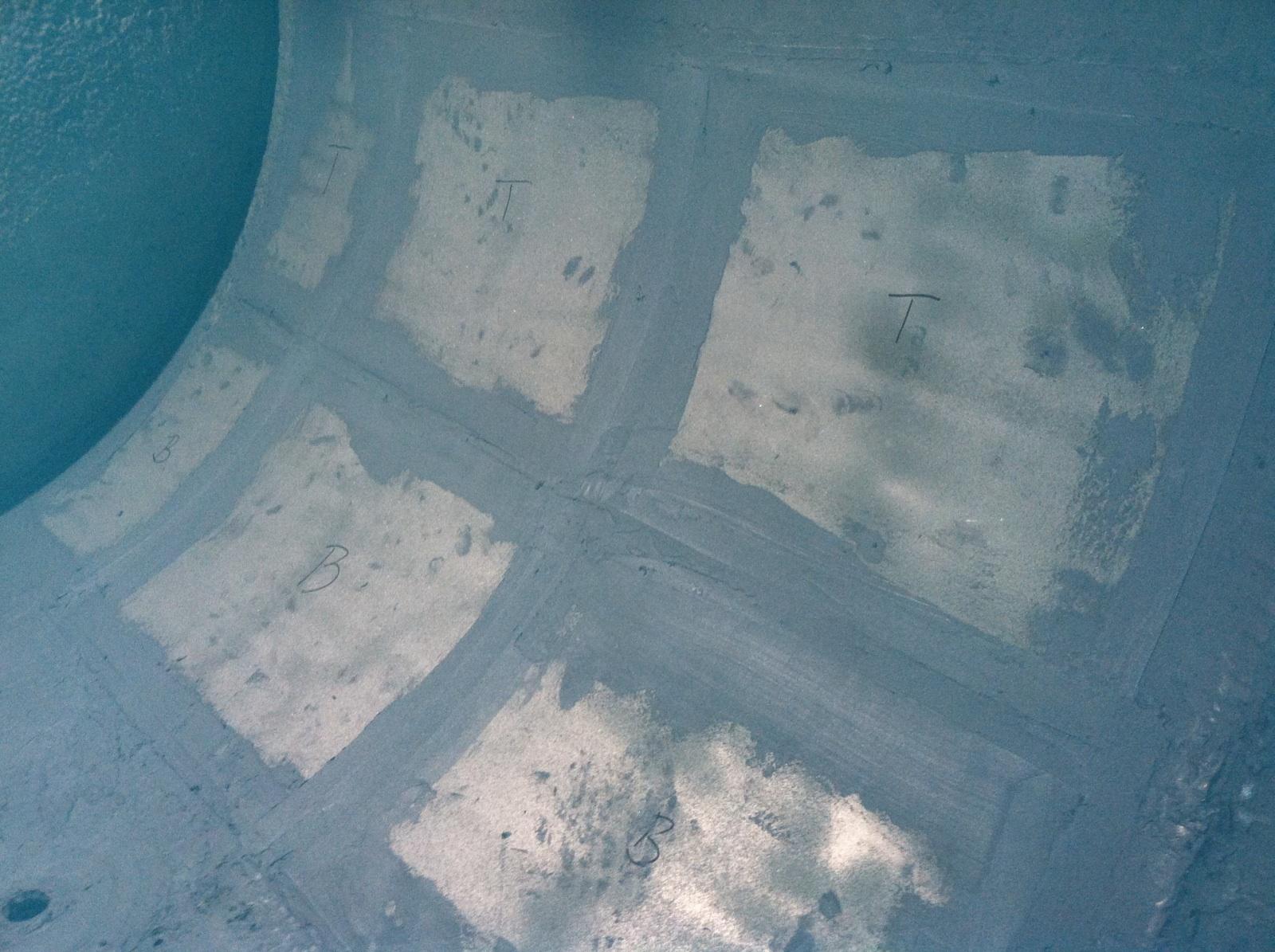

  • Repair of existing equipment linings

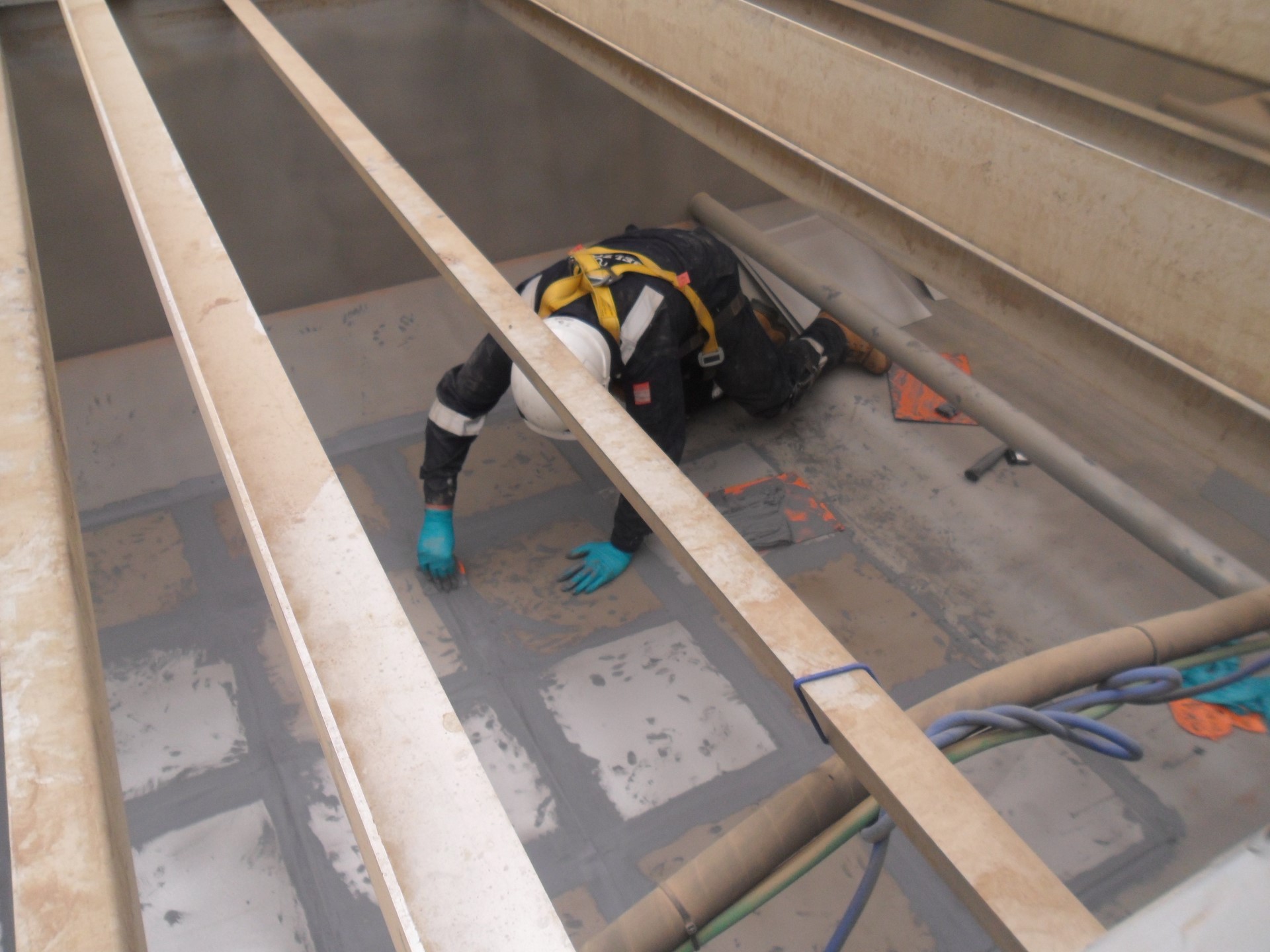

  • Protection of tanks and secondary containment areas from chemicals and the effects of corrosion

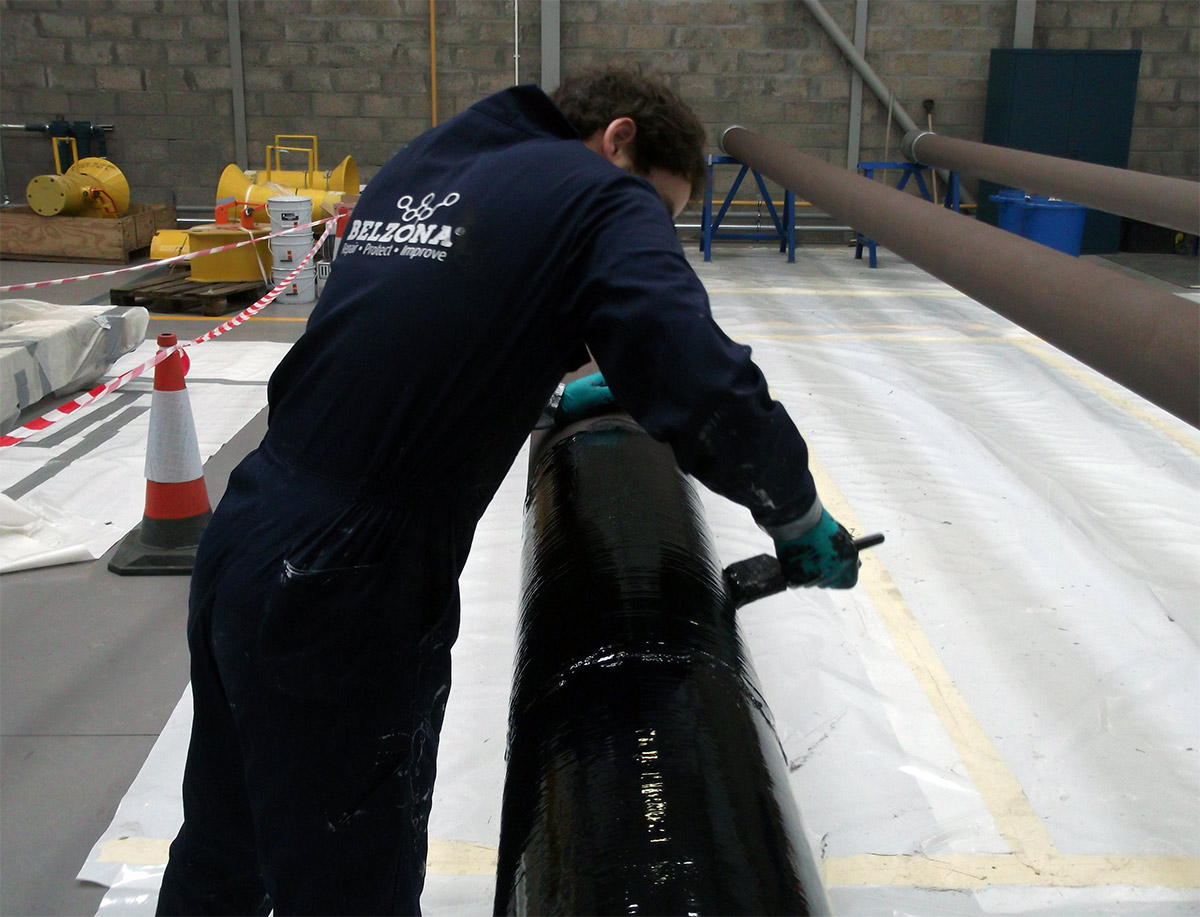

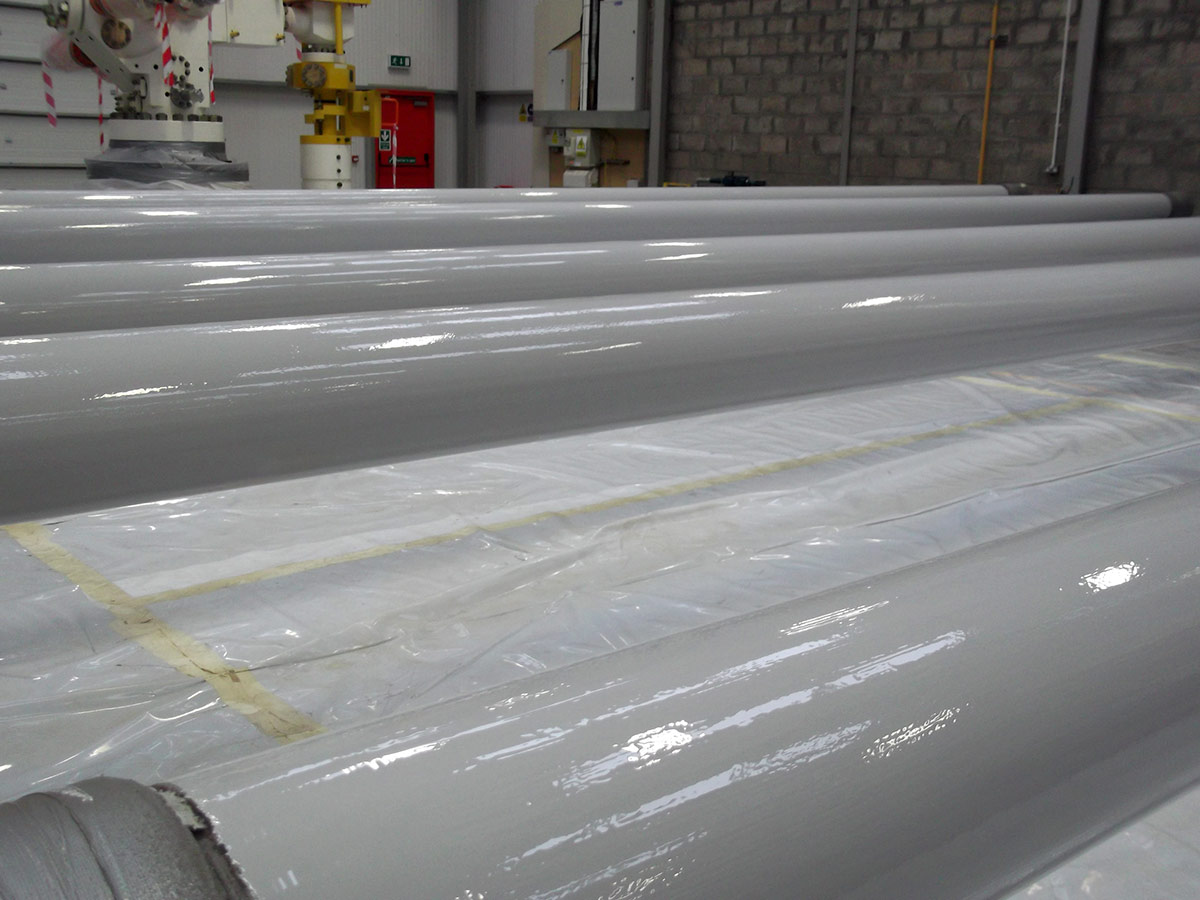

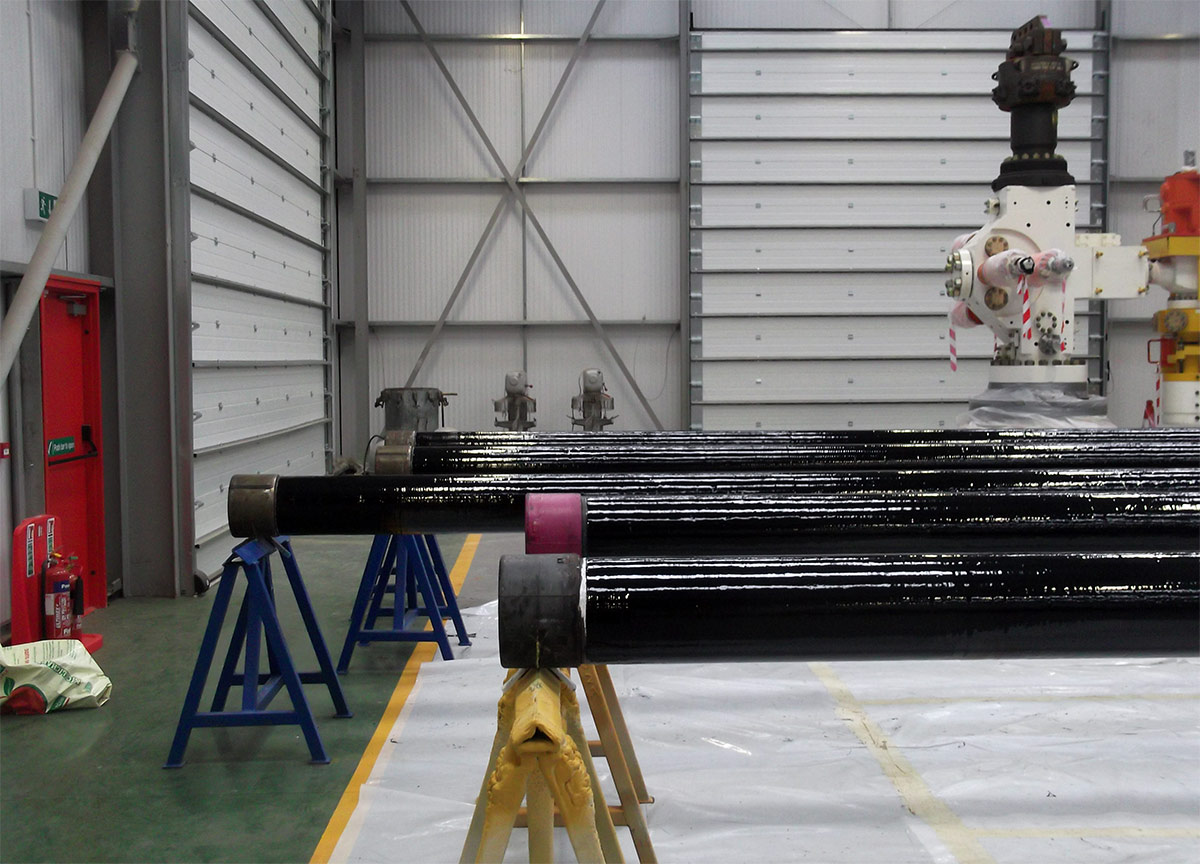

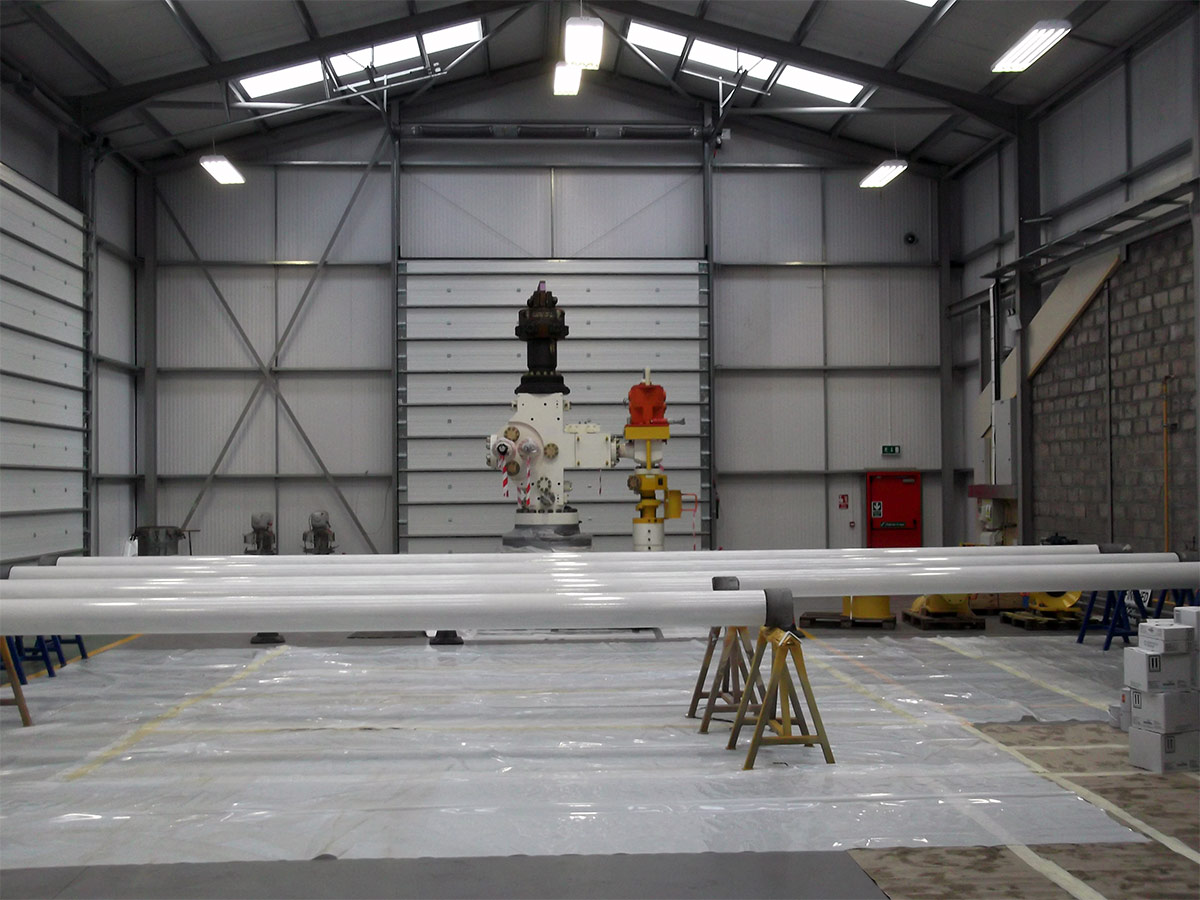

  • Coating of pipelines prone to corrosion damage
  • Creation of irregular load bearing shims
Key technical data:
Working life at 20°C (68°F)  40 minutes
Time to immersion service at 30°C (86°F) 24 hours
Pull off adhesion (D4541 / ISO 4624) 5500 psi (37.9 MPa) at room temperature on grit blasted steel
Coverage rate Practical coverage rate for a 2 coat system:
3.4 sq.m. (36.5 sq.ft.) per litre per coat
Temperature resistance 95°C (203°F) immersed
Bonds to Most metallic and non-metallic surfaces including cast iron, stainless steel, brass, copper, concrete, wood, fiberglass and aluminium
Typical applications Protection of equipment operating under immersion at high temperatures
Unit size 4 litres and 10 litres. Pack sizes may vary locally.
Availability* Global

* All products are subject to regional restrictions. Check with your local Distributor for more information


Approvals:

NSF/ANSI 61

NSF-ANS-61

WRAS Approved Material

Bureau Veritas logo

More information:

For more information about Belzona 5892 please contact us or find your local distributor.

You can apply to join Belzona Connect to access additional information including SDS and instructions for use.

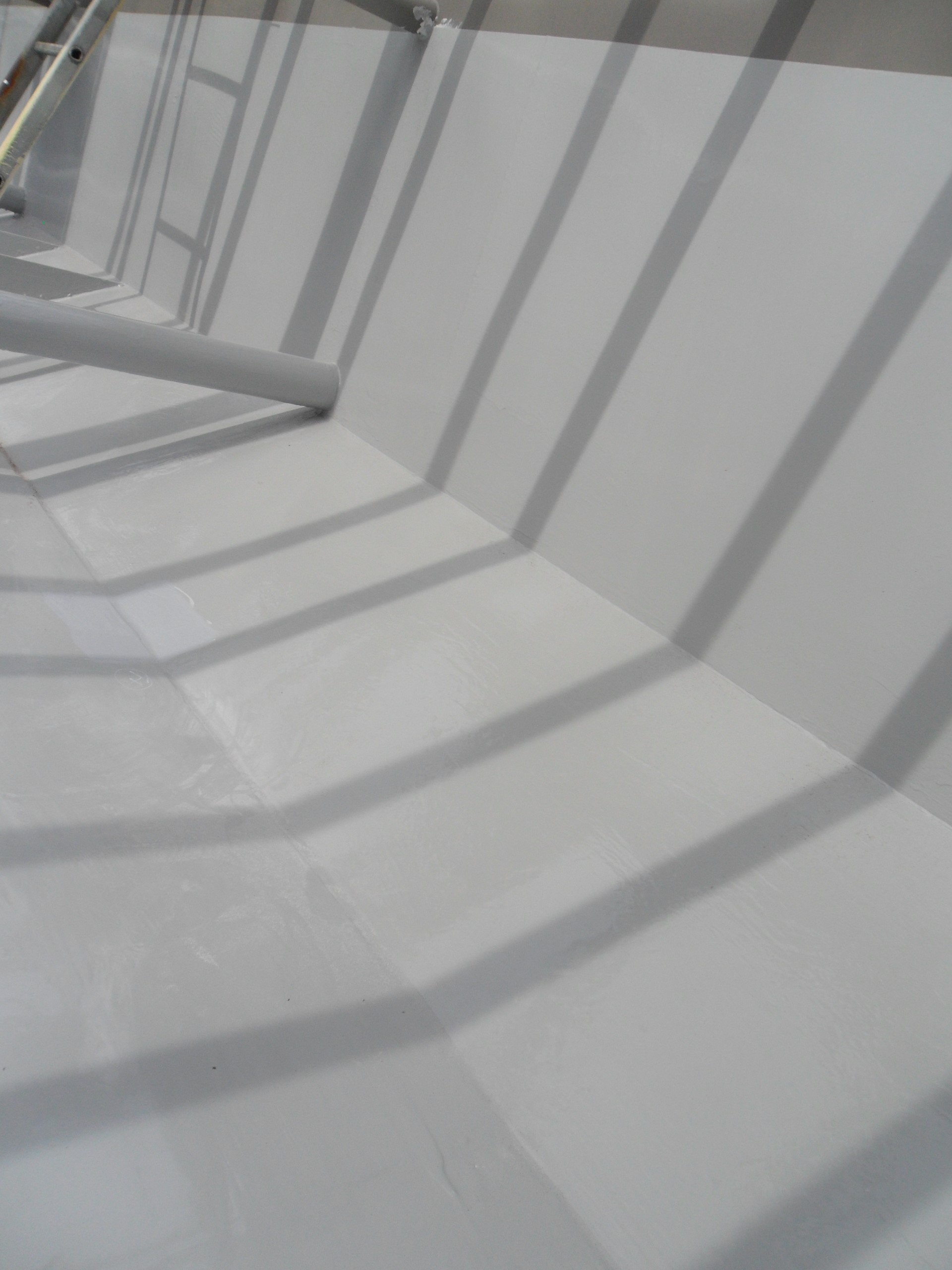

Photo gallery:
