Belzona 5813

High Performance Static Dissipative, Solvent Free, Barrier Coating

Belzona 5813



Belzona 5813 is a solvent-free, two-component static dissipative barrier coating.

This epoxy based coating system is designed to transfer surface electrostatic charge build-up away from hazardous areas. Due to its excellent static dissipative properties, Belzona 5813 helps to eliminate electrostatic charge where flammable materials are stored.

Surfaces coated with Belzona 5813 prevent sparks, shorts, sudden discharge that can lead to an explosion.

Belzona 5813 is easy to mix and can be applied without the need of specialists tools.

Applications for Belzona 5813 include:

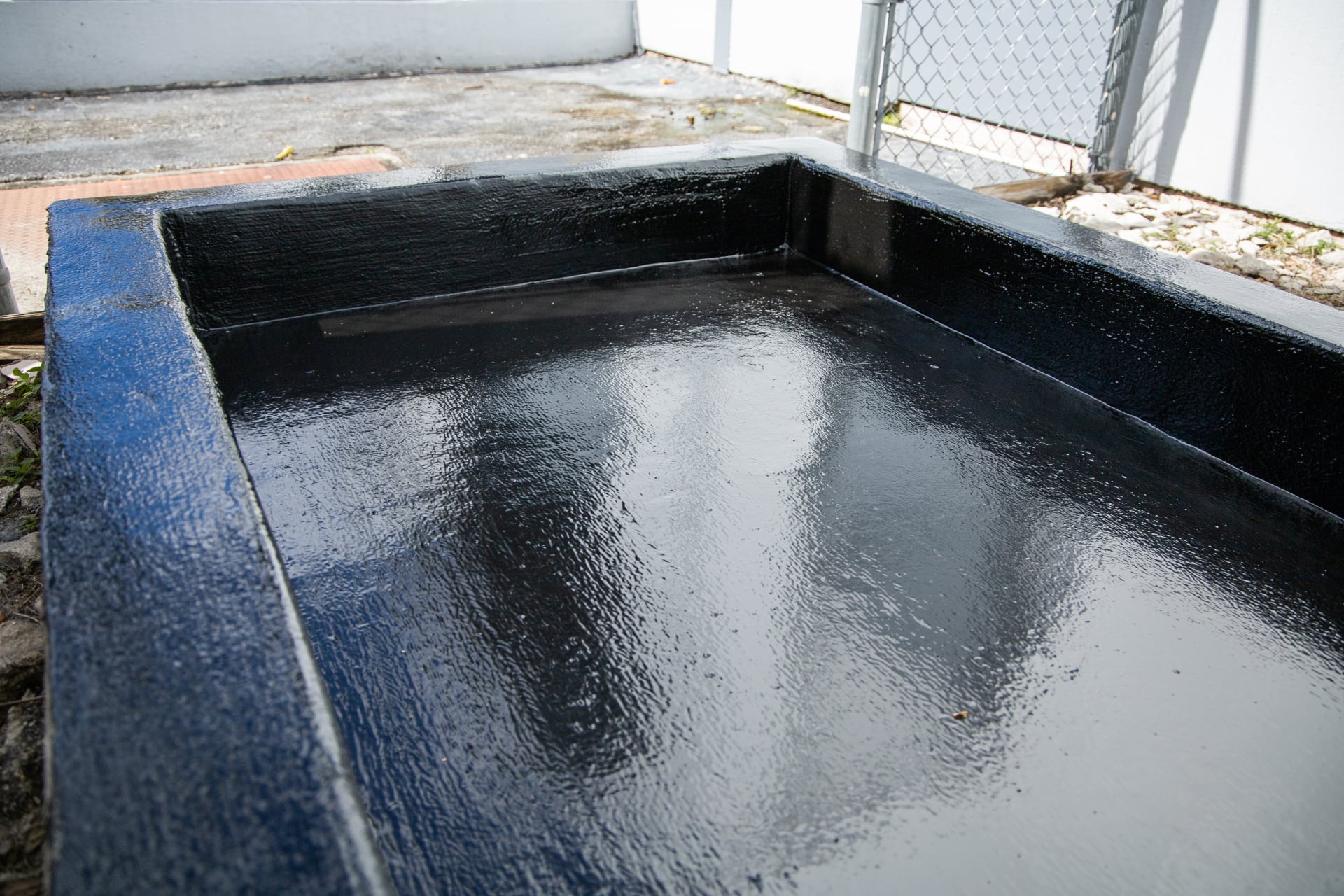

  • Static dissipative and chemically resistant coating for primary and secondary chemical containment areas
  • Fuel storage tanks where fluid is agitated i.e. pumping and piping and filtration systems
  • Static dissipative coating for refineries and grain silos, highly susceptible to static charge accumulation
  • Static dissipative floor coatings for factories and warehouses
Key technical data:

Mixing ratio (base : solidifier)

5 : 1 by weight

3 : 1 by volume

Working life

90 minutes at 20°C (68°F)

Shelf life

3 years

Surface Resistivity

Concrete: 106-108 Ω/square

Steel:
105-107 Ω/square

Adhesion (ASTM D 4541/ ISO 4624)

Blasted steel:
4,430 psi (30.5 MPa)

Dry concrete:
>800 psi ( 5.5 MPa)*

Compressive Strength (ASTM D695)

9,200 psi (63.4 MPa)

*Cohesive failure of the substrate


More information:

For more information about Belzona 5813 please contact us or find your local distributor.

You can apply to join Belzona Connect to access additional information including SDS and instructions for use.
