Belzona 1321 (Ceramic S-Metal)
A 2-part ceramic filled epoxy coating designed to provide erosion and corrosion resistance of metal surfaces. This solvent-free epoxy coating has outstanding chemical resistance and will bond to almost any rigid surface. Due to its high compressive strength it can be also used to create a perfect shim. This material is easy to mix and apply without the need for specialist tools and it cures at room temperature eliminating the need for hot work.
Key Benefits:
- Long-term erosion and corrosion protection
- Excellent bonding to almost any rigid surface including steel, aluminium, copper, brass and glass reinforced plastics
- High compressive strength
- Excellent chemical resistance against a wide range of chemicals
- Reduced health and safety risks as it is solvent-free
- No shrinkage, expansion or distortion
- Application and cure at room temperature - no hot work involved
- Long working life
- Simple mixing ratio
Applications for Belzona 1321 (Ceramic S-Metal) include:

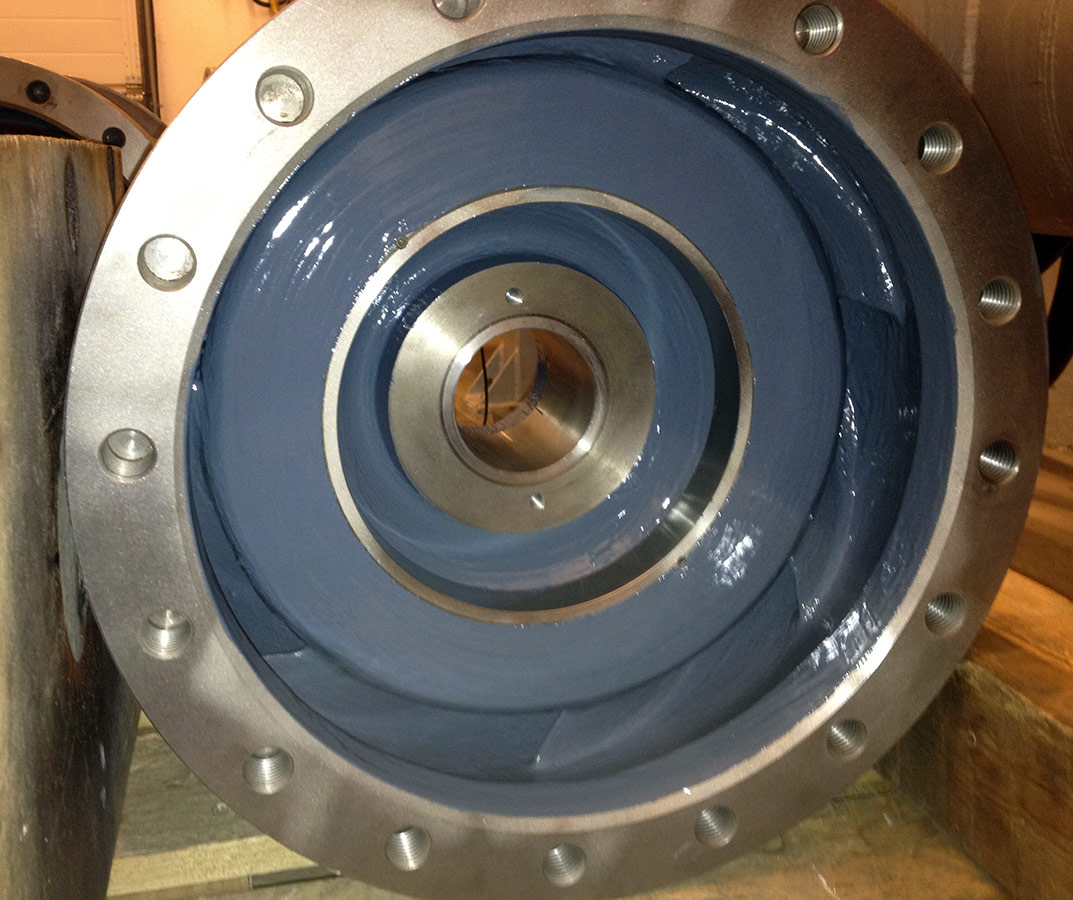

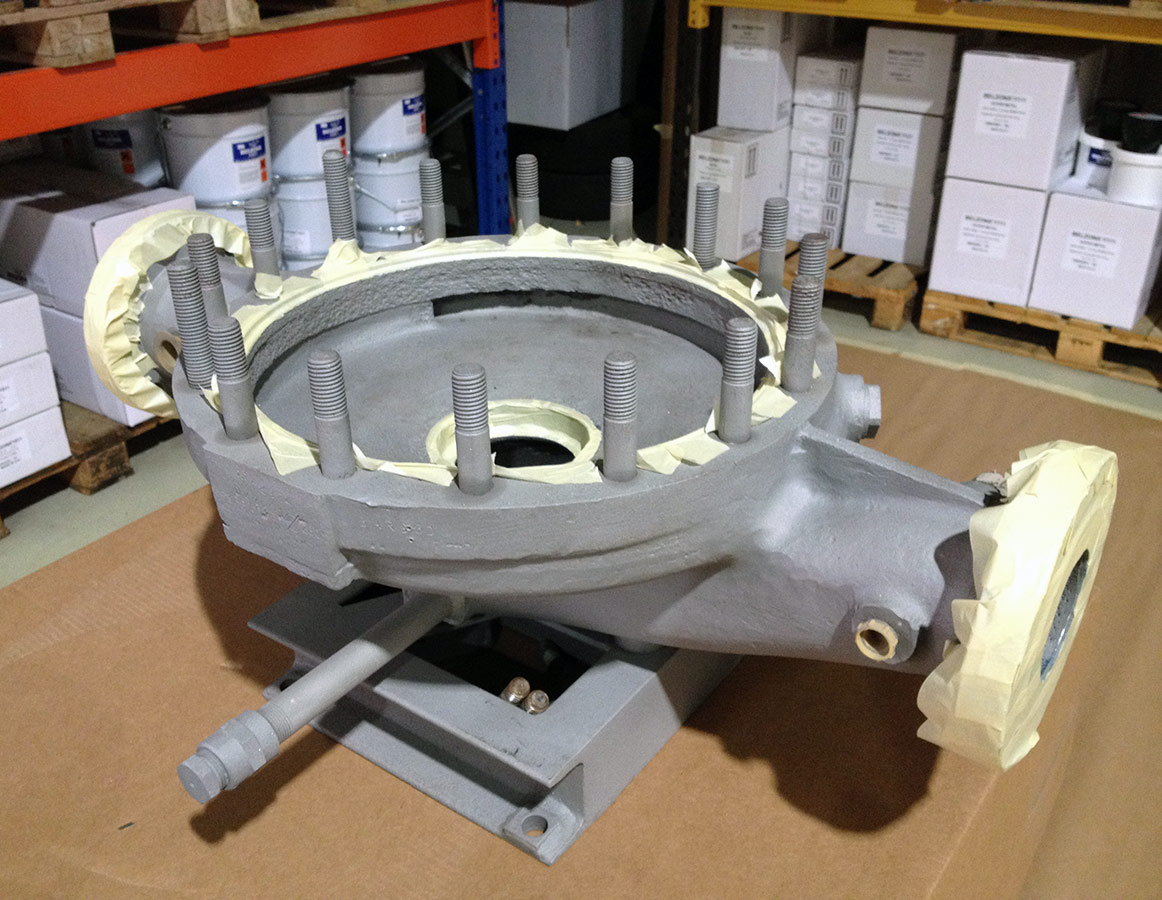

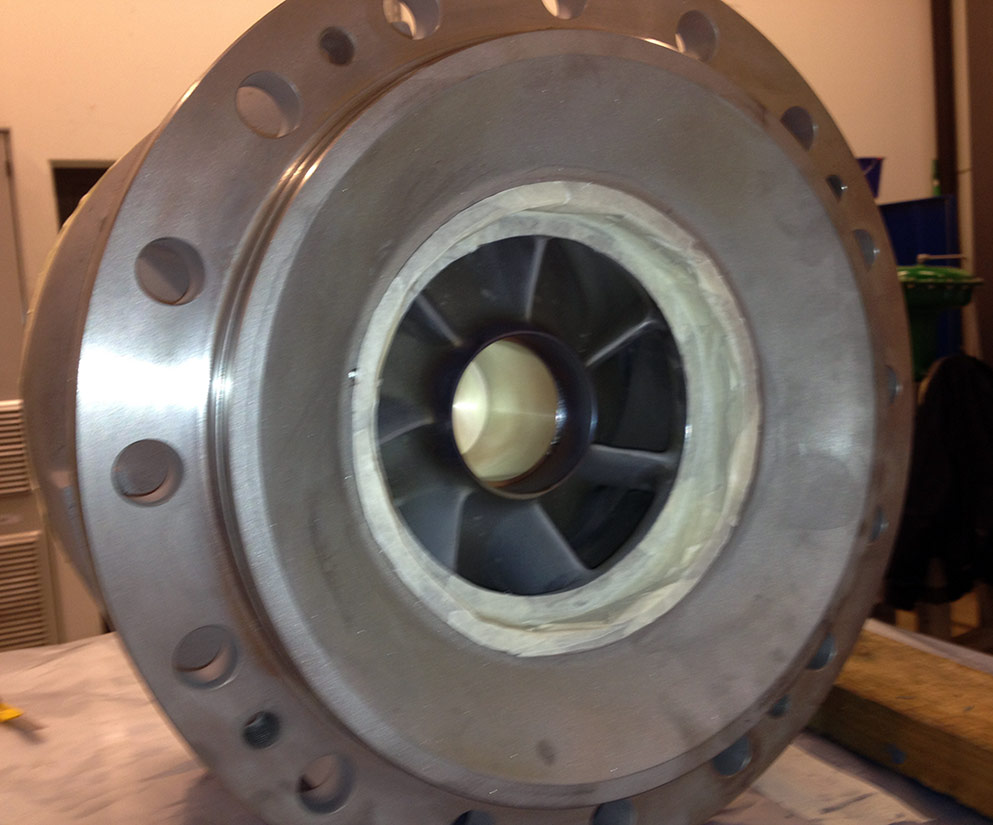

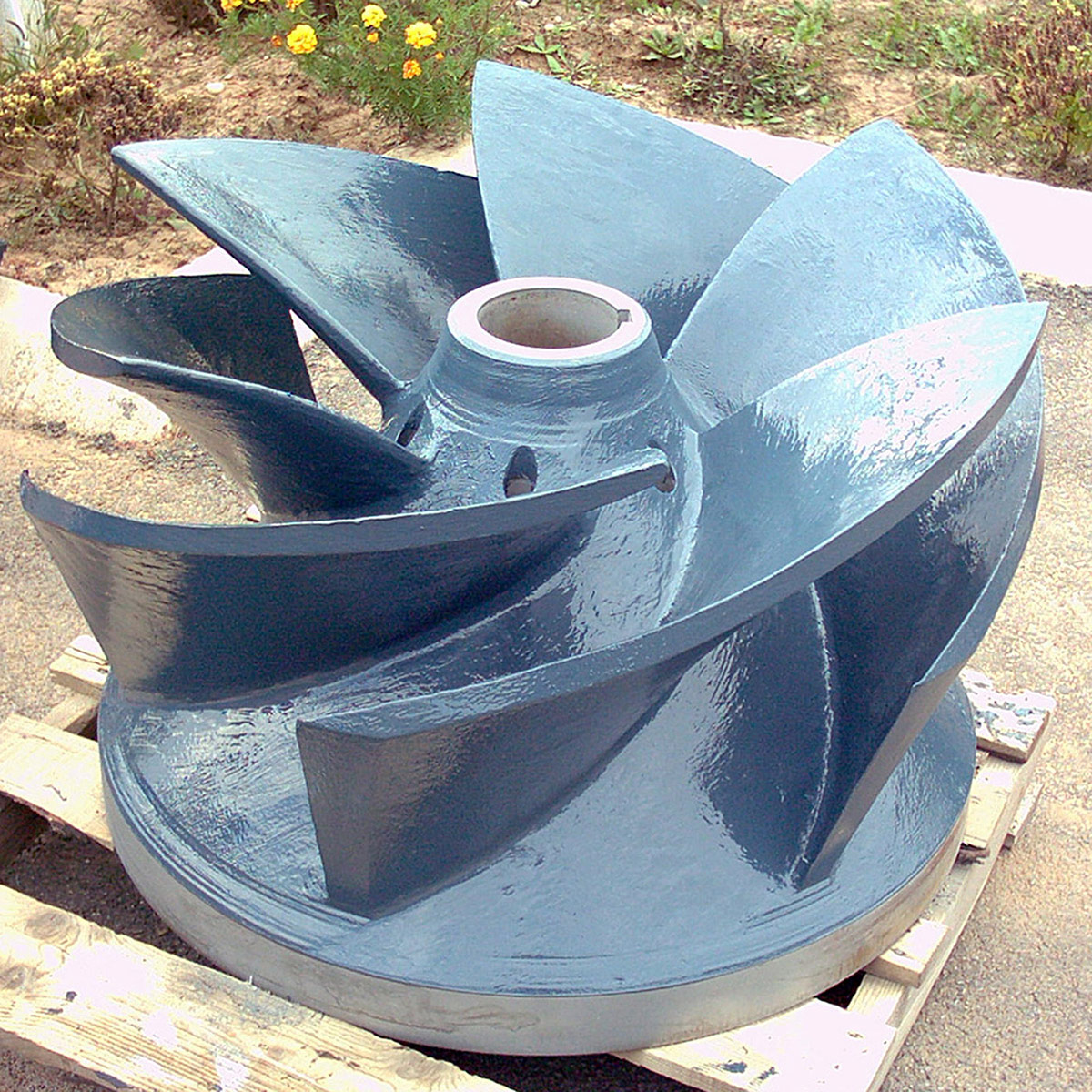

- Internal coating for centrifugal and positive displacement pumps

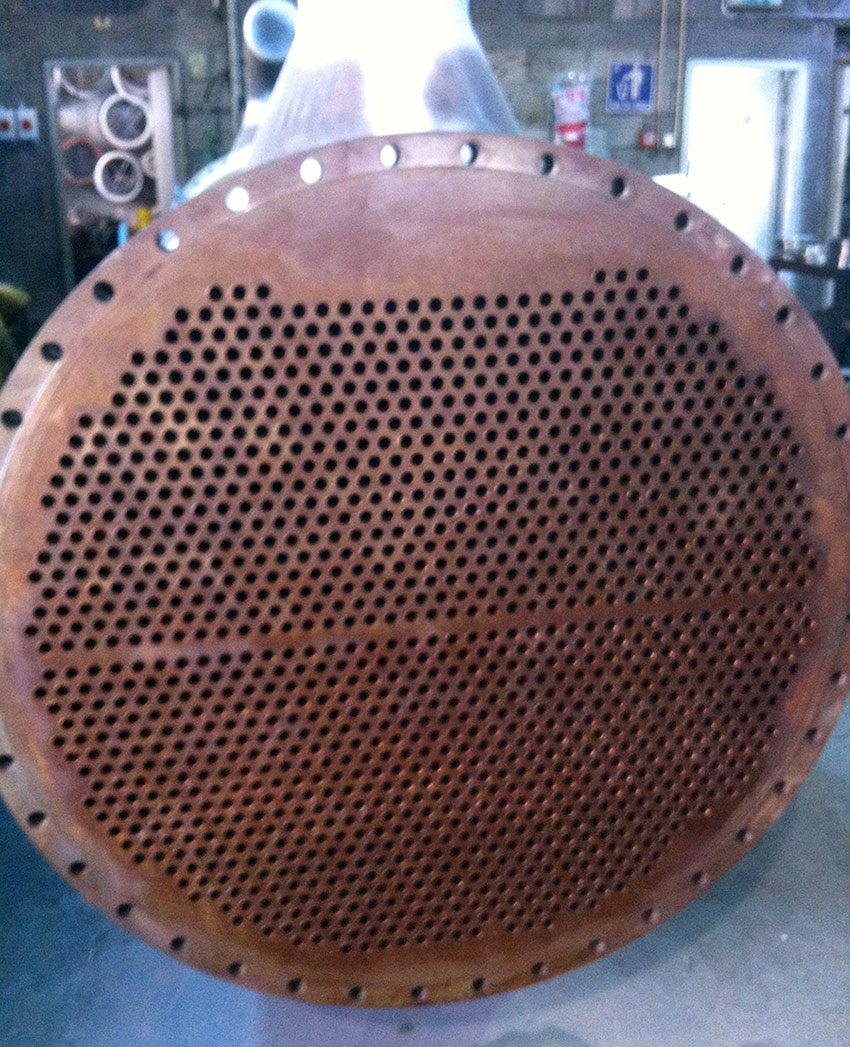

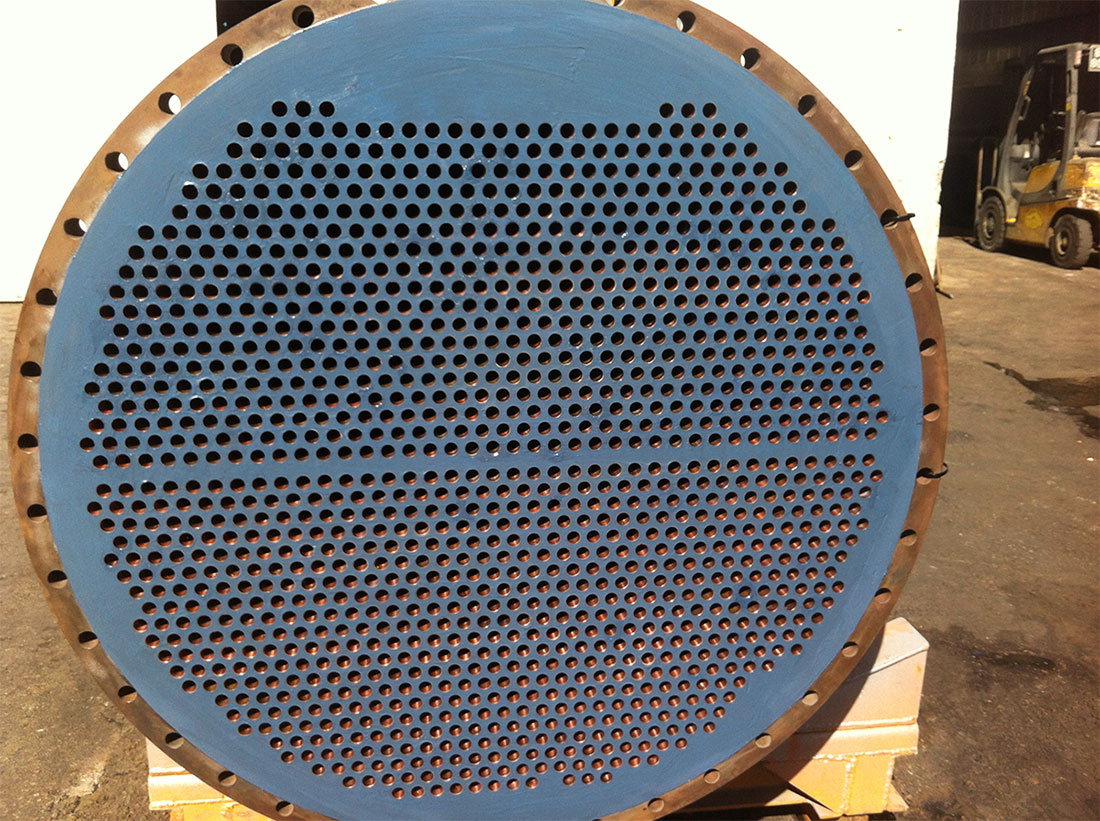

- Long-term erosion and corrosion resistance for heat exchangers, water boxes and tube sheets

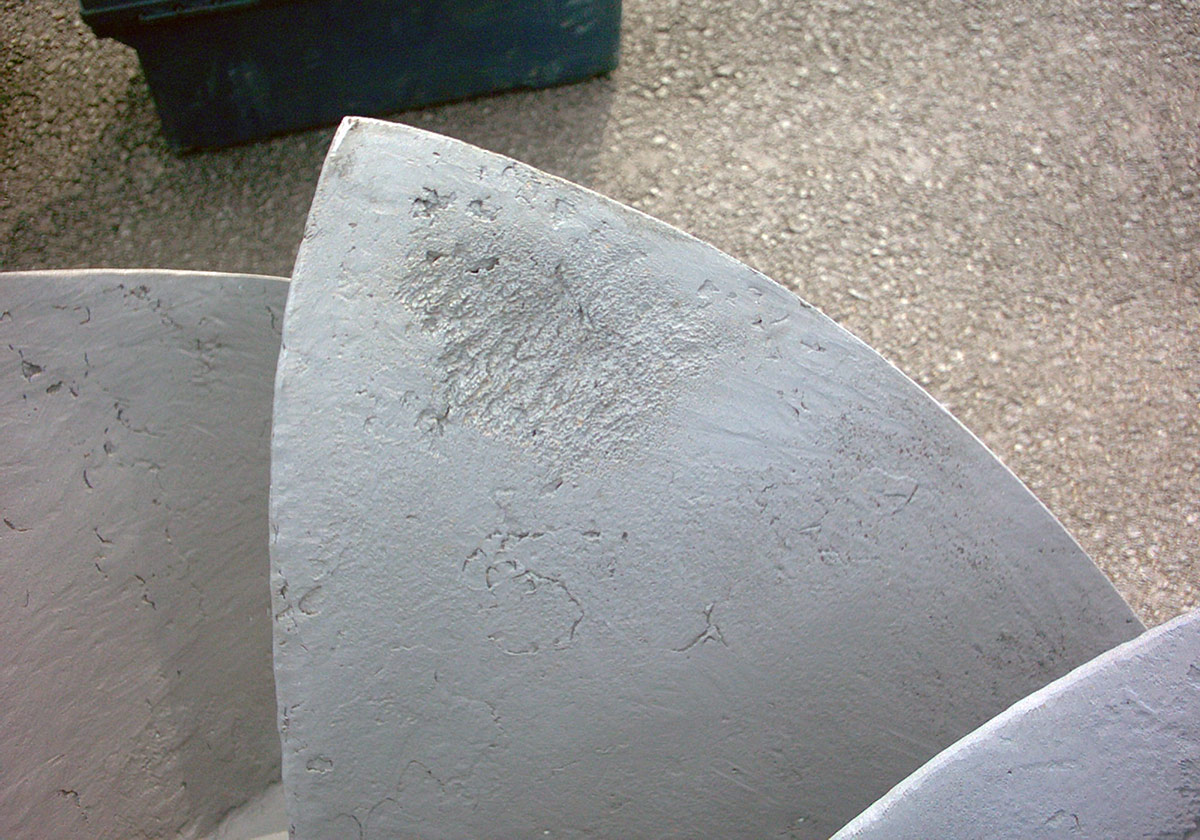

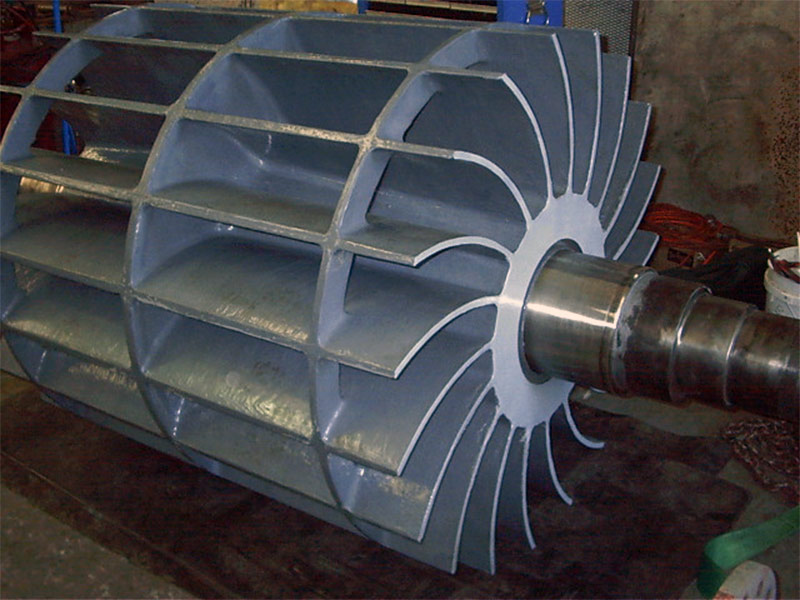

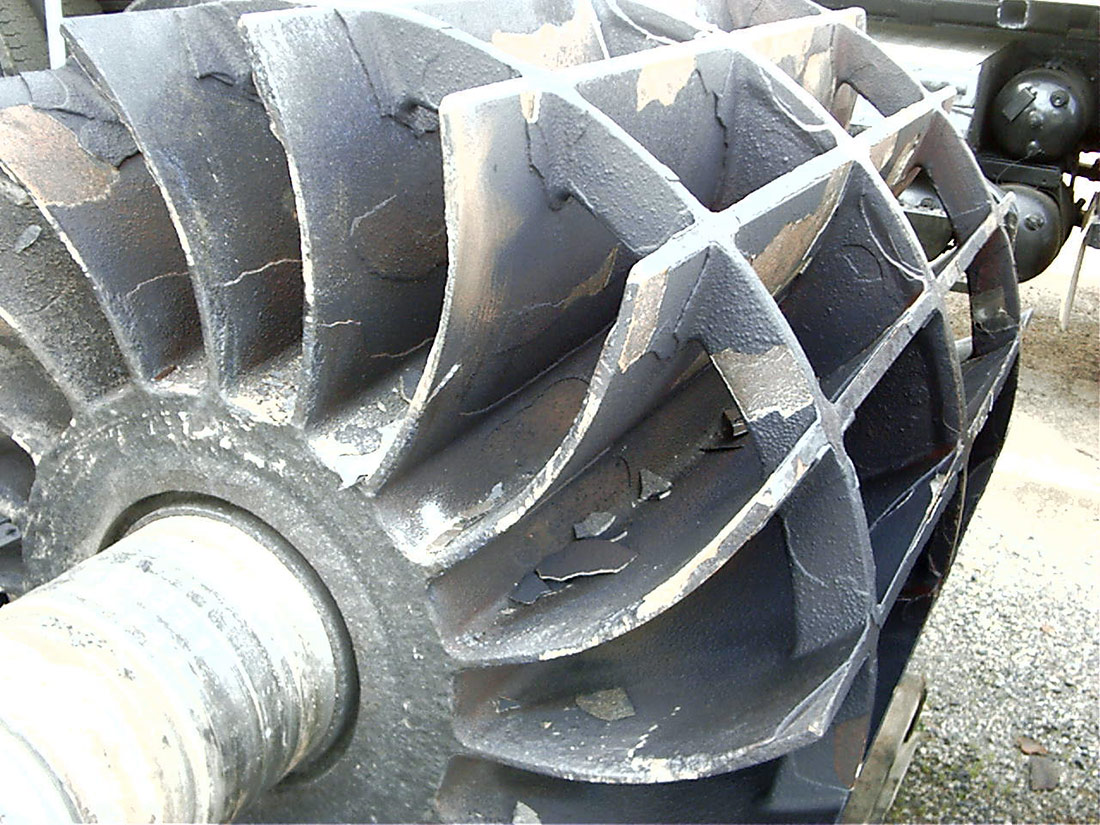

- Protection of butterfly and gate valves, fans and kort nozzles from erosion, corrosion and cavitation
- Impingement protection of pipe elbows
- High strength structural adhesive for metal bonding
- Creation of irregular load bearing shims
Key technical data: |
Working life at 25°C (77°F) |
30 minutes |
Time to immersion service at 25°C (77°F) |
24 hours |
Coverage rate |
Practical coverage rate for a 2 coat system:
1.0 sq.m. (11 sq.ft.) per kilogram per coat |
Pull off adhesion (D4541 / ISO 4624) |
6,330 psi (43.64 MPa) on grit blasted steel |
Compressive strength (ASTM D695) |
12,500 psi (86.18 MPa) |
Temperature resistance |
60°C (140°F) immersed, 220°C (428°F) dry |
Bonds to |
Steel, aluminium, copper, brass, glass reinforced plastics and many more |
Typical applications |
Coating, injection, shimming and many more |
Unit size |
1kg, 3kg. Pack sizes may vary locally. |
Availability* |
Global |
* All products are subject to regional restrictions. Check with your local Distributor for more information
Approvals: |
ABS Approval
|
 |
Bureau Veritas Type Approval
|
 |
WRAS Approved Material
|
 |
Germanischer Lloyd Approval
|
 |
China Classification Society
|
 |
More information:
For more information about Belzona 1321 (Ceramic S-Metal) contact us or find
your local
distributor.
You can apply to join Belzona Connect to access additional
information including SDS and instructions for use.
